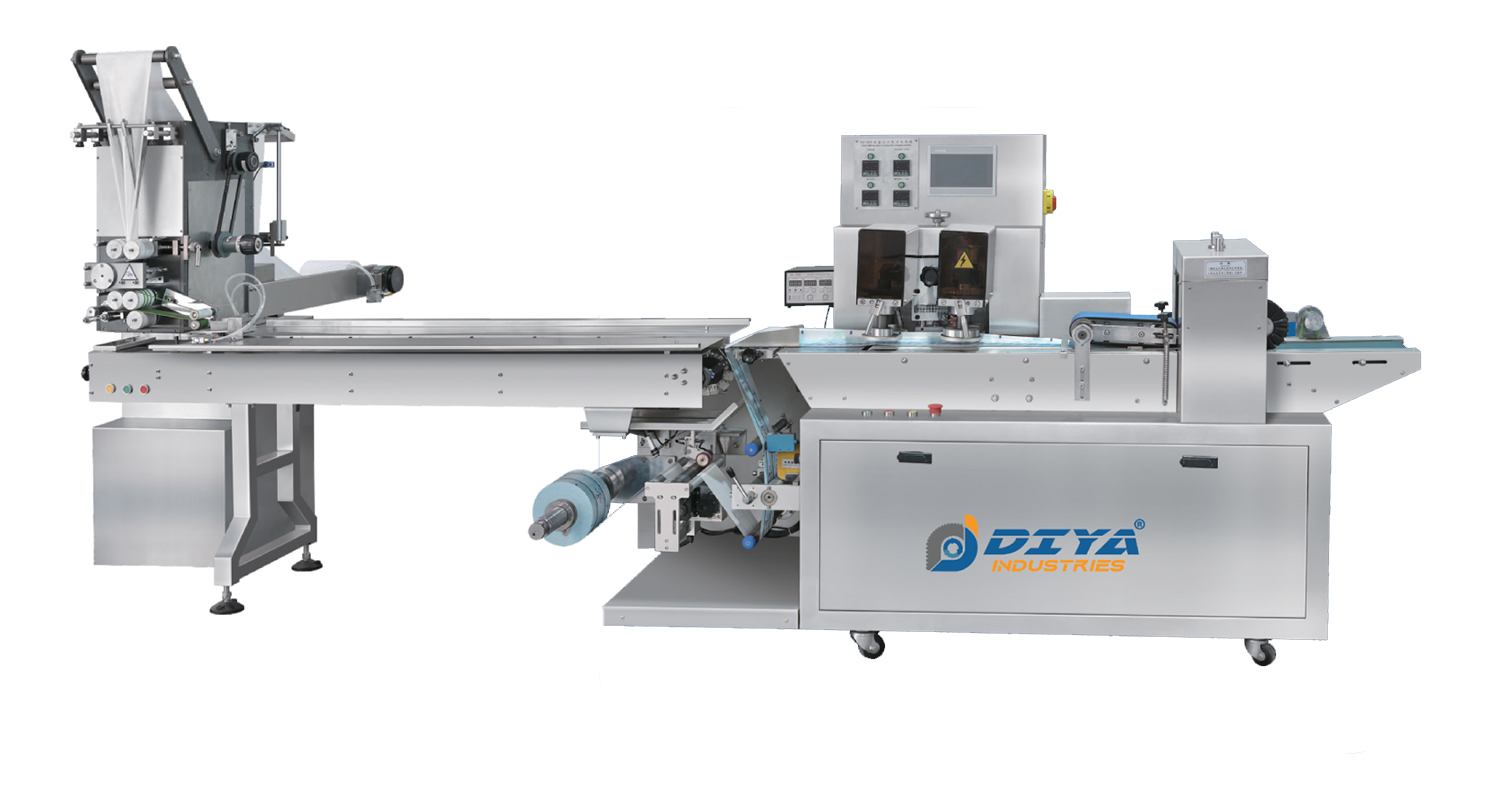

01-05 pcs/bag (Single Head) Wet Wipes Making Machine
01-05 Pcs/Bag, Semi-auto solution or Fully auto solution
The Wet Wipes production line is used to manufacture disposable wet wipes for household cleaning, and multiple models of products can be selected.
Packaging speed: Fully-auto: 420 cuts/min.
Packaging size: L(150-230)*W(100-120)*H(20-80)mm ( Can be adjusted )

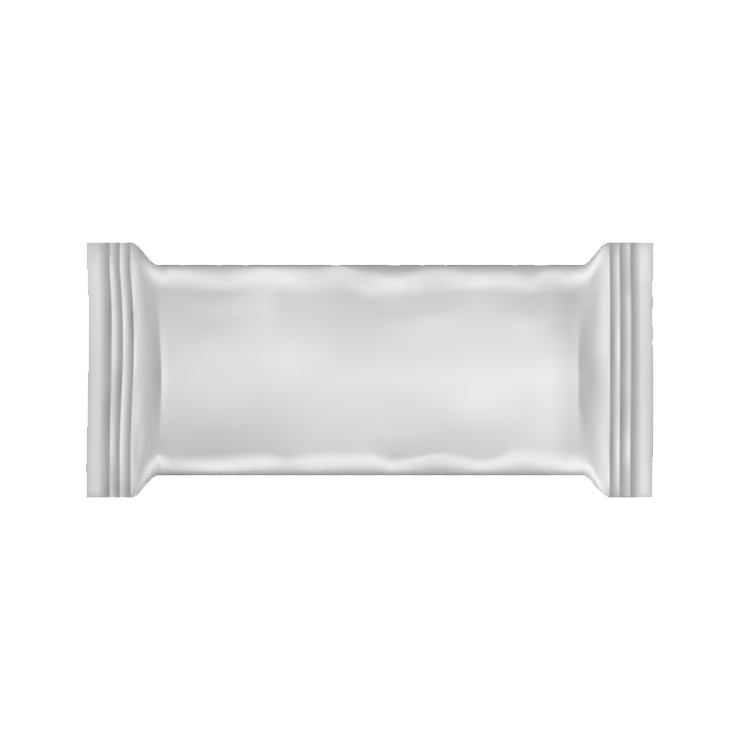

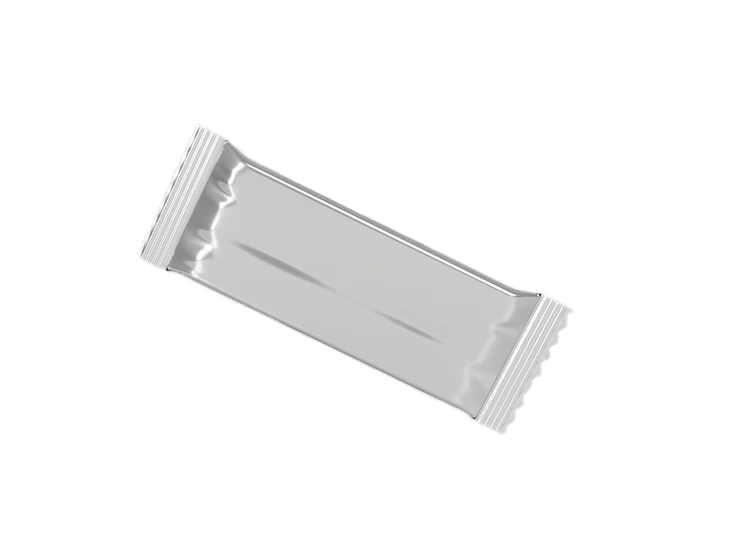

FINAL PRODUCT
Width: 100-120mm; Length: 150-230mm; Height: 20-80mm
Folding Method: N type single pumping, C type single pumping
This removable wet wipes production line is used to produce disposable household cleaning wet wipes or baby wipes, such as baby hand wipes, toilet wipes, etc.
EQUIPMENT LAYOUT

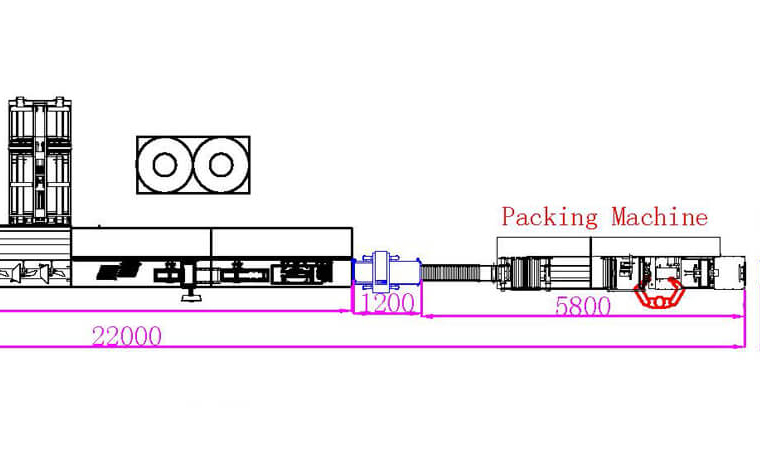

Layout of Fully Automatic Wet Wipes Making Machine
TECHNICAL PARAMETERS
| Model | DI-6F | DI-6S |
|---|---|---|
| Folding method | N type single pumping, C type single pumping | |
| Wet Wipes Unfolded Size | Length (100-180)*Width (90-200) mm | |
| Wet Wipes Folded Size | Length (100-180)*Width (90-110) mm | |
| Speed | 420 cut/min | 350 cut/min |
| Total Power | AC380V 50/60HZ 18KW (Can be customized) | AC380V 50/60HZ 9KW (Can be customized) |
| Gas Source | 0.6MPA-0.8MPA Air consumption: 0.15m³/min | |
| Material of Wet Wipes | Spunlace non-woven fabric | |
| Parent Roll Specification | Maximum diameter: 1100mm, Width: (200-1200) mm | |
| Packaging Material Specification | Diameter 350mm, maxwidth: 350 mm | |
| Package Dimensions | Length(150-230)*Width(100-120)*Height(20-80)mm | |
| Sticker Size | Standard 35-50mm(Can be customized) | |
| Hole Size | Standard 20-40mm(Can be customized) | |
| Sticker Thickness | 0.6mm-0.08mm | |
