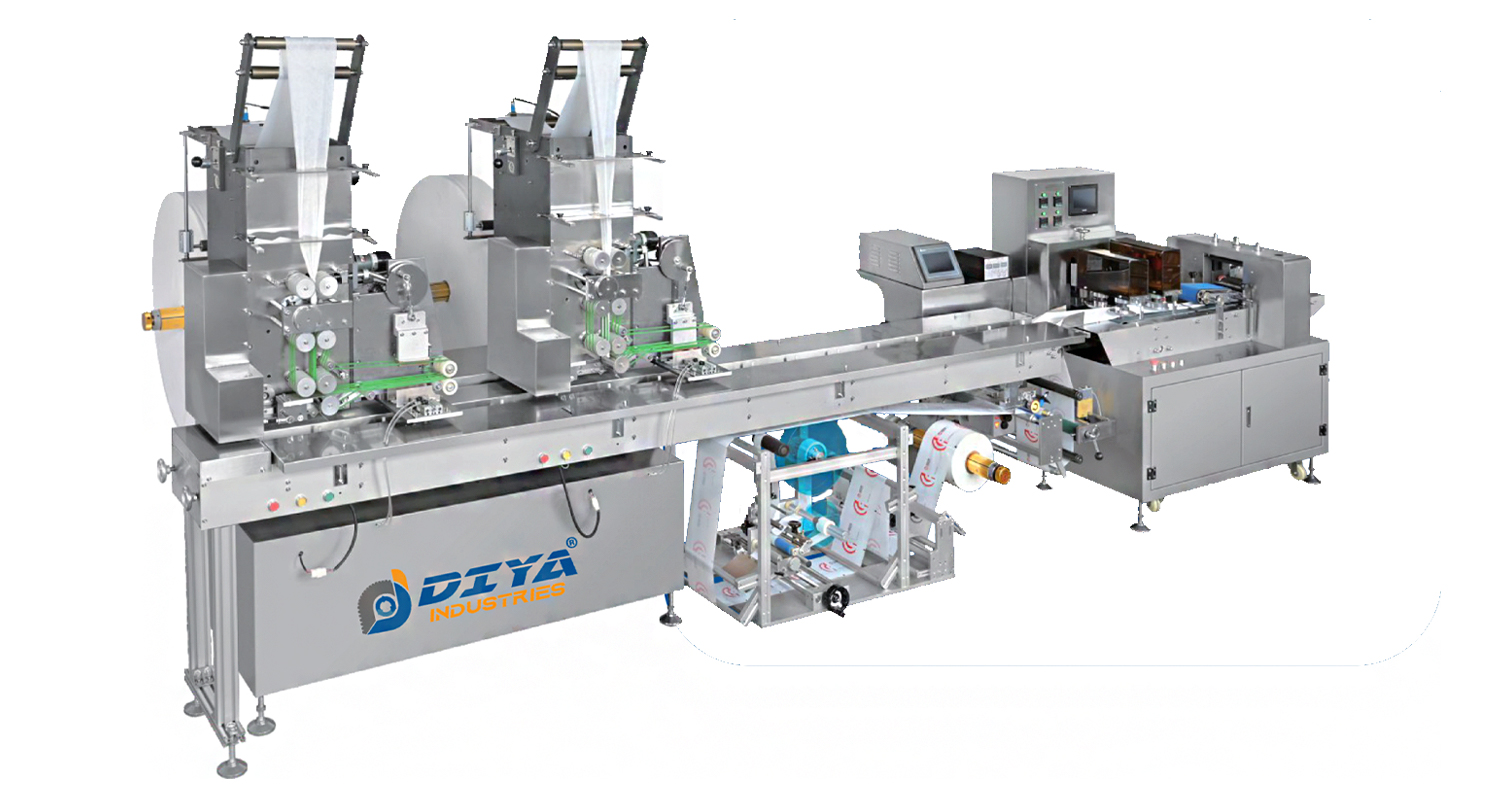

5-30 Pcs/Bag(Double Head Machine) Wet Wipes Machine
Model: DY-16 / DY-20, 1 Pcs/Bag, 5-30 Pcs/Bag, Fully Automatic
DY16(20) removable wet wipes making machine is used to produce disposable household cleaning wet wipes or baby wipes.
Packaging speed: 300-450 cuts/min
Packaging size: length: 150-360mm, width: 80-110mm, height: 20-100mm ( Can be adjusted )

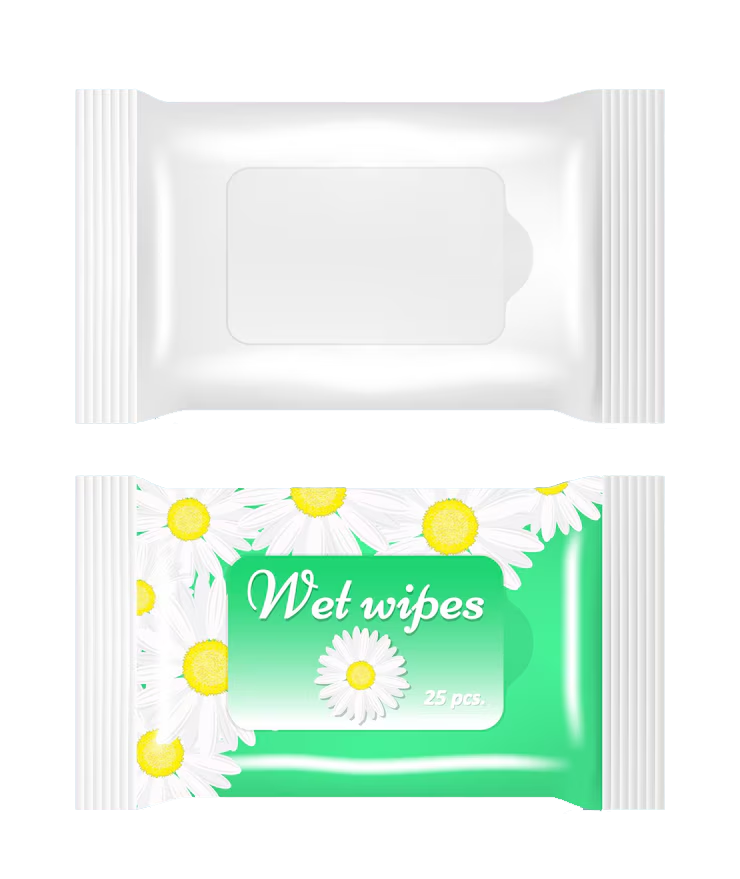

FINAL PRODUCT
Length: 150-360mm, Width: 80-110mm, Hight: 20-100mm ( Can be adjusted )
Folding Method: “C”-Type or “N”-Type Folding
DY20(16) big pouch wet wipes production line is used to produce disposable household cleaning wet wipes or baby wipes, such as baby hand wipes, toilet wipes, etc.
EQUIPMENT LAYOUT
TECHNICAL PARAMETERS
| Model | DI-30 | DI-05 |
|---|---|---|
| Folding method | “C”-Type or “N”-Type Folding | |
| Wet Wipes Unfolded Size | Length (100-240)*Width (150-210) mm | |
| Wet Wipes Folded Size | Length (100-240)*Width (80-150) mm | |
| Speed | 300-450cuts/min | 300-450 cuts/min |
| Total Power | AC380V 50/60HZ 41KW | AC380V 50/60HZ 40KW |
| Gas Source | 0.6MPA-0.8MPA Air consumption: 0.3m³/min | |
| Material of Wet Wipes | Spunlace non-woven fabric etc. | |
| Parent Roll Specification | Maximum diameter: 1100mm, Width: (90-210) mm | |
| Packaging Material Specification | Diameter 350mm, maxwidth: 350 mm | |
| Package Dimensions | Length(150-360)*Width(80-110)*Height(20-100)mm | |
| Sticker Size | Standard 35-50mm(Can be customized) | |
| Hole Size | Standard 20-40mm(Can be customized) | |
| Sticker Thickness | 0.6mm-0.08mm | |
