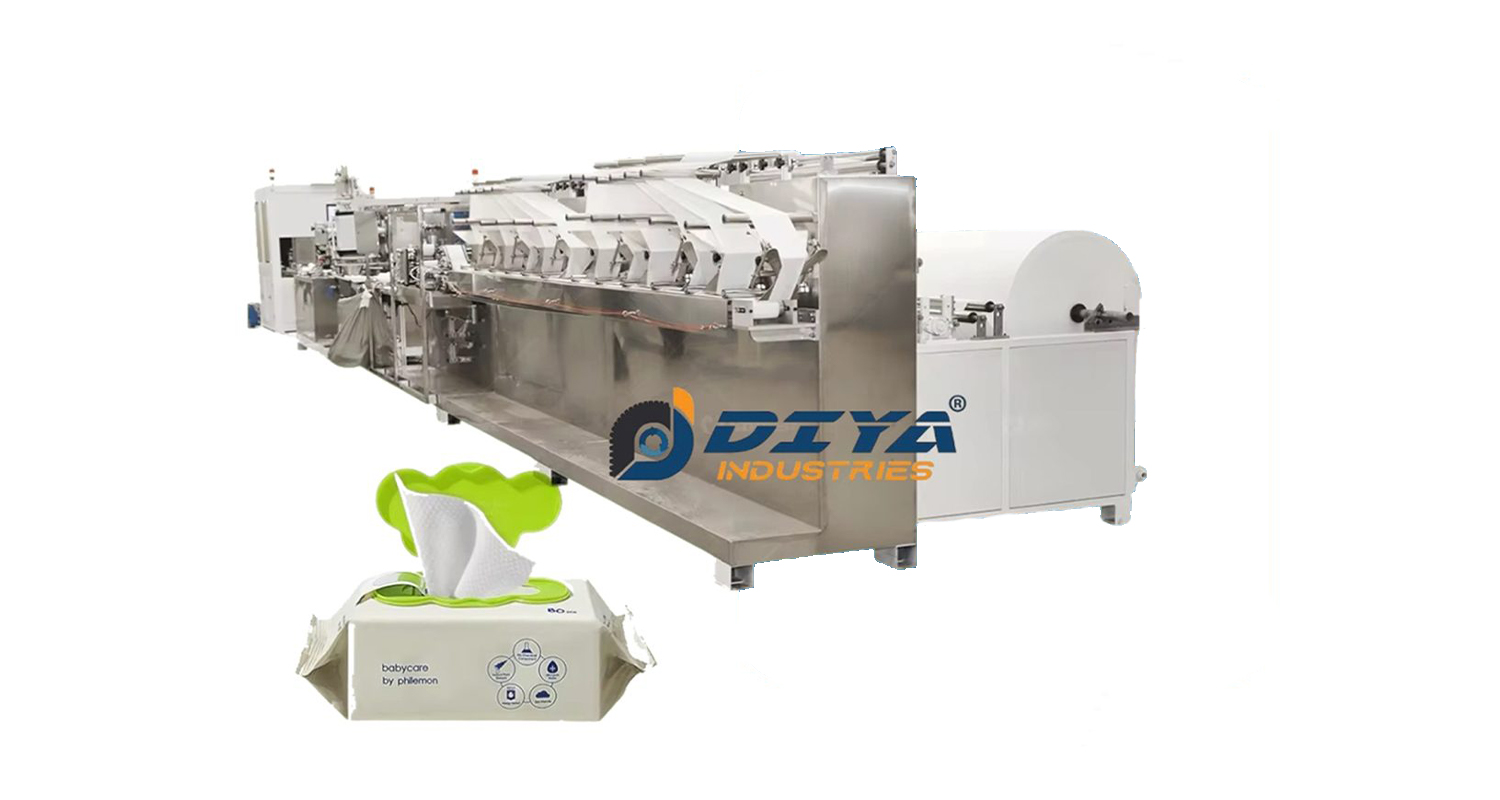

30-120 Pcs/Bag (Single Station OR Double Station) Multi Pulls Production Line
Model: DY-12, 30-120 Pcs/Bag, Fully Automatic
DY-12 big pouch wet wipes machine can meet the needs of enterprises for high production capacity.
Packaging speed: 400-450cuts/min
Packaging size: length: 140-300mm, width: 80-110mm, hight: 20-100mm
FINAL PRODUCT
Width: 80-110mm; Length: 140-300mm; Hight: 20-100mm
Folding Method: “N”-Type Folding
This DY-12 removable wet wipes production line is used to produce disposable household cleaning wet wipes or baby wipes, such as baby hand wipes, toilet wipes, etc.

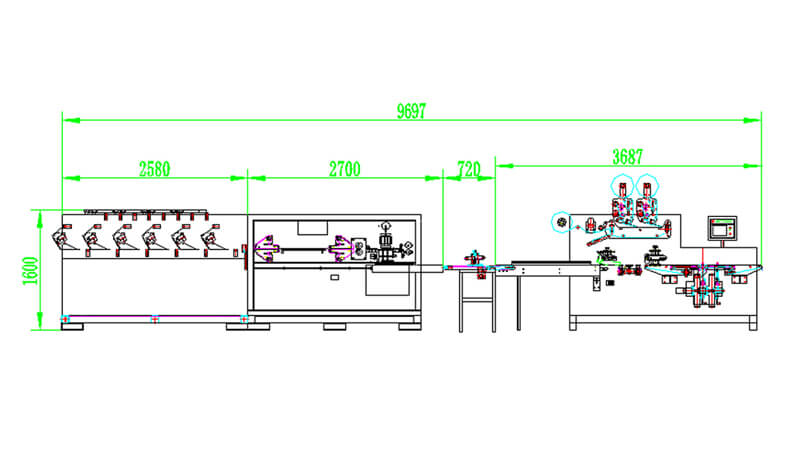

EQUIPMENT LAYOUT
![30-120 Pcs/Bag Wet Wipes Machine [Diya industries - wet wipes manufacturing machine]](https://wetwipesmachine.in/wp-content/uploads/2025/03/07.jpg)
TECHNICAL PARAMETERS
| Name | Fully automatic 30-120 piece wet wipes machine |
|---|---|
| Model | TR30-120 |
| Power supply | 380V 50HZ |
| Total power | 25KW |
| Production speed | 2400-3600 pieces, 80 pieces, 30-40 packs/minute |
| Folding method | Shape folding (not continuous) |
| Product unfolded size | (150~230)×(150~250) mm (length × width) |
| Product folded size | (150~230)×(90~120) mm (length × width) |
| Applicable materials | Spunlaced non-woven fabric, OPP/PE, PET/PE |
| Material weight | 35~80 g/m² |
| Raw material size | (1000~1500)×1000 mm (width × diameter) |
| Machine weight | Approximately 9000 kg |
| Water tank size | 1000×500×900 mm (length × width × height) |
| Water tank capacity | 200L/piece*2 (with 2 pieces) |
| Machine size | 18330×3380×2350 mm (length × width × height) |
| Expanded size | (180~300)×(90~120)×(30~80) mm (length × width × height) |
| Control system | PLC control system, color package touch screen |
| Optional | Adjustable bag maker suitable for products with different number of pieces |
